Boya kovası bira kutu pnömatik ekran yazıcı makinesi



Boya kovası bira kutu pnömatik ekran yazıcı makinesi

$3776
≥1 Set/Sets

Model	S-220S
Şimdi başvurun

model numarası.: S-220S

Marka: KC

Baskı Plakası Türü: Ekran yazıcısı

Uygulanabilir Endüstri: Çiftlikler, Perakende, İnşaat işleri

Garanti Dışı Servis: Video teknik desteği, Çevrimiçi destek, Yedek parçalar, Saha bakım ve onarım hizmeti

Yerel Hizmetler Nerede Sağlanmalı (hangi ülkelerde Yurtdışı Hizmet Satış Noktaları Vardır): İtalya, Vietnam, Peru, Pakistan, Rusya, Japonya, Fas

Showroom Konumu (hangi ülkelerde Yurt Dışında örnek Odalar Bulunmaktadır): Suudi Arabistan, Hindistan, ispanya, Kenya, Şili, Cezayir, Bangladeş, Ukrayna

Statü: Yeni

Anavatan: Çin

Kullanım: Etiket yazıcısı, Bill Yazıcı

Otomasyon Derecesi: Yarı otomatik

Renk Numarası Ve Yüzey Numarası Yazdırma: Tek renk

Garanti Süresi: 1 yıl

Temel Satış Noktası: Düşük Gürültü Seviyesi, Çok Renkli

Pazarlama Türü: Sıradan Ürün, Yeni Ürün 2019

Mekanik Test Raporu: Sağlanan

Video Fabrikası Denetimi: Sağlanan

Temel Bileşen Garanti Süresi: 1 yıl

Temel Bileşenler: PLC, Motor

Açıklama

Şirket Videosu

Plastik Şişeler Ekran Baskı Makinesi

00:42

S-380'ler ekran yazıcısı

00:22

S-380'ler Ekran Baskı Makinesi

00:41

Ürün Açıklaması

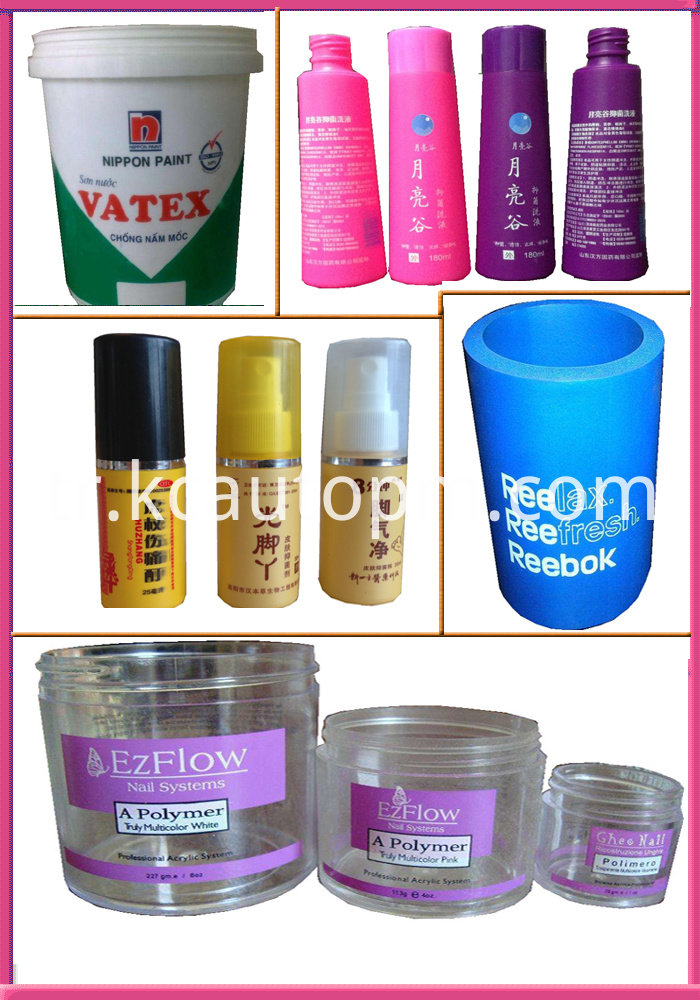

Örnekler

255

Makine Açıklaması

220mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
You can use the foot switch for automatic operation, the safety factor greatly increased;
Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

S-220s Çok Fonksiyonlu Ekran Baskı Makinesi // Parametreler

Max. printing height: 320 mm;
Max. Printing diameter:;whole circle: 220 mm;.arc: 680 mm;
Max. printing speed: 1000 pcs/hr;
Air consume: 80 Litre/min(6bar).
Max Screen Frame: 850×450mm;
Stroke up-and-down of working table: 150mm;
Stroke up-and-down of Squeegee: 50mm;
Max length of printing objects: 400mm;
Range back-forth of Squeegee: 250mm;
Diameter of Fixture axis: 18mm;
Range back-forth of screen frame: 180mm
Works supply: 110V-220V Power supply;5-7 Bar compress air;
Package Dimension: 1130*1560*1360mm;
Gross weight: 190kg;
CBM: 2.3974
H.S.CODE: 8443198000
Certificate: CE

S-220S Çok Fonksiyonlu Ekran Baskı Makinesi // Avantajı

Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
Microcomputer control program operations, set up a variety of modes;
Four counts digital LED count, high degree of automation;
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
