Konveyörlü düz ekran yazıcı makinesi

• Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
• Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
• The structural design using the up and down movement of the screen plate type, conducive removed and placed;
• Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
• Semi-automatic operation, the operator interface can be used;

S-81110F Flat screen printing Machine with conveyor //Parameters

• The max printing thickness: 200 MM;
• Air consumption: 75 Lit/Min;
• Outline size: 1080×850×1280MM;
• The max printing area : 80×110MM;
• Dimension of working table: 80mm×115mm;
• Max printing speed: 1800Pc/H;
• Max frame dimension: 550×250mm;
• Stroke of Squeegee: 250mm;
• Stroke of Table cylinder: 200mm;
• Number of working table: 10

• Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
• Screen lift, precision and smooth running.
• Automatically the line scraping oil back to the for mimeographed head movements function.
• Printing stroke and speed can be flexibly adjusted.
• Automatically balance the scraper technology.
• Before and after the screen frame and turn the trim function.
• Cast aluminum alloy beams, pneumatic lifting mode.
• Foot printing function;
• Scraper can set as stopping front or Back;

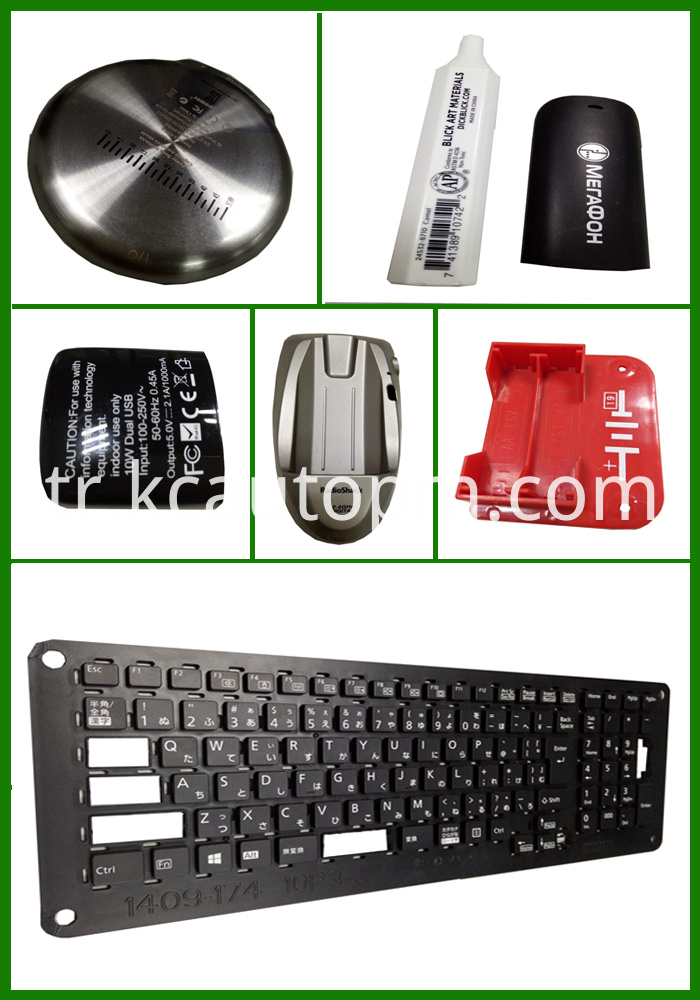

• 10 Products installed to improve production printing speed.
