Tek Renk Stand Pad Yazıcısı

Standard T-slot worktable with three dimension adjustment, it's convenient to adjust. Multiple modes is easy for adjusting this pad printer. Commissioning and running modes, testing machine and printing is more quickly. Another mode, twice ink and printing one time, ensure the ink thickness.

Ink-tray pad printer is widely used in industrial field. It could be used to printing on caps, ceramic bowl, plastic products and so on. It's easy to add the ink and additive

One color pad printer//Guide

• With Open inkwell to store ink, ink adjustment more convenient, more suitable for striking observation.
• With coin aluminum structure ensure more stabilization and long life.
• Can print almost small size objects . So sold very nice in the world.
• Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
• Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
• Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection;
• Self-balanced scraping ink technology, squeegee clean, easy to replace

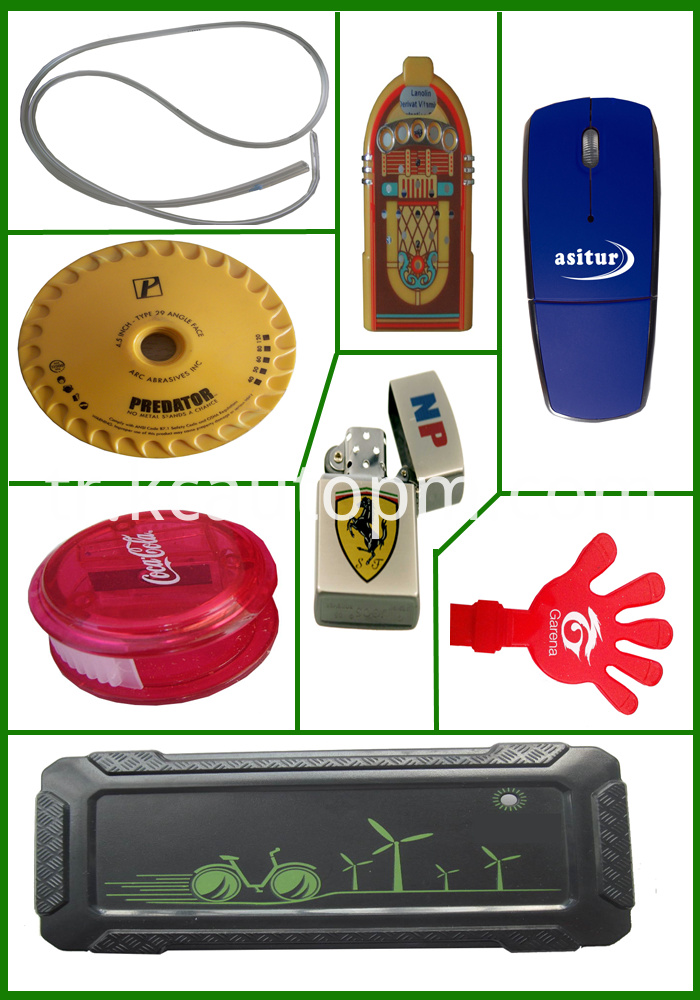

One color pad printer//Application fields

One color pad printer //Parameter

• Max. plate size: 200×250;
• Max. worktable area: 400×150 mm;
• Max. printing area: 170×220;
• Max. printing speed: 1400 pcs/h;
• Printable color quantity:1.

P1-612

• Max. plate size: 200×300;
• Max. worktable area: 400×150 mm;
• Max. printing area: 170×270;
• Max. printing speed: 1400 pcs/h;
• Printable color quantity: 1

One color pad printer //Advantage

• Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
• T-slot structure, easy installation of fixtures and products;
• Hand pick and place work-piece, operating more handy;
• Microcomputer program control, the movement is more accurate and reliable;
• Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
• Equipped with four counters, can effectively measure the number of products;
• Structure using die-casting aluminum, lightweight and solid.
• Independent Rubber pad up and down stroke and speed adjustment function;
• Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
• Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
• World famous pneumatic components to ensure the long service life of machine;
• Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
• Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.
