Manuel Hassas Vakum Tablo Ekran Baskı Makinesi

• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Precision micro-adjustment working table ensure high precision screen printing
• Inspiratory function of flat screen printing machine is suitable for easy printing process go a bit thin products, such as: paper, PVC film, plastic film, textiles and other printing;
• With manual operation, which will help the product to remove and place;
• Bench grinding stainless steel countertops, suction uniform;

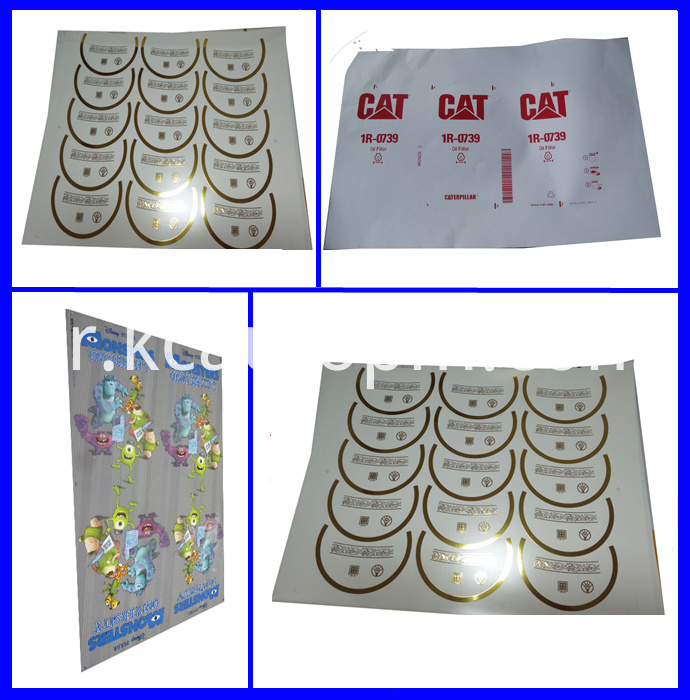

• Widely used in paper packaging and mirror printing, glass printing, machine panel, sticker printing, combined with a variety of processes, you can achieve a UV matte, UV Glitter, UV partial varnish and coating processes;
• Also widely used in water transfer paper, heat transfer paper printing.

Application

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

PSM-6080V Flat Manual screen printing Machine with vacuum table//Parameters

PSM-5070V  High-precision Manual screen printer with vacuum working table

• Worktable area:550×750mm
• Max printing area:500×700mm
• Max size of frame: 800×1000mm
• Net weight:110kg.
• Colour Number: 1;
• Operating: manual;
• Max object Height: 150mm;
• Range adjustment of working table: +-10mm.

PSM-6080V  High-precision Manual screen printer with vacuum working table:

• Worktable area:650×850mm
• Max printing area:600×800mm
• Max size of frame: 900×1100mm
• Net weight:130kg.
• Colour Number: 1;
• Operating: manual;
• Max object Height: 150mm;
• Range adjustment of working table: +-10mm.

Works supply :110V-220V Power supply.

Package dimension:1200×900×930mm;

Gross weight: 135.5KG;

CBM: 1.0044

H.S.CODE: 8443192190

Certificate: CE

PSM-6080V Flat Manual screen printing Machine with vacuum table //Advantage

• Manual operating and Lower Cost;
• With vacuum worktable. 1.5mm diameter Hole distributed evenly on working table;
• High precision Table made by stainless and have accurate Grinding ensure High Precision screen printing.
• Handle Micro-adjustment Screw Make Range of X and Y Movement Precision;
• High strongly Whirlpool-type Vacuum pump installed Make objects adsorbed mightiness;
• Precision Round-axis guide to control the Screen nip up and down.
